測試工具類
我們提供各種接口、尺寸外觀的儲存裝置，透過轉卡上的信號轉換器功能，可協助客戶測試不同系統的各種嵌入式存儲模塊。
產品特色
Compliant with PCI Express Base Specification
Compliant with Universal Serial Bus 2.0 Specification
Supports M.2 A-E key wireless module such as 3G, 4G, WLAN, WWAN, Bluetooth
Supports M.2 2230/2242 bbbb factor

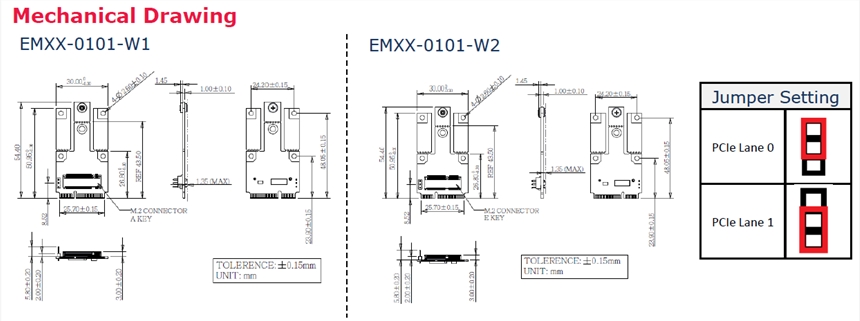

Supports M.2 PCIe Lane 0 & Lane 1 by pin header setting
Industrial temperature -40 oC to 85 oC
規格：
| Module Name | EMXX-0101 |
| Module Type | mPCIe to M.2 A-E key Module |
| bbbb Factor | mPCIe |
| bbbbb I/F | PCI Express 1.0/ USB 2.0 |
| Output I/F | PCI Express, USB 2.0 |
| Output connector | M.2 Key-A-E |
| Dimensions (W x L x H/mm) | 30 x 54.4 x 8.15 |
| Temperature | Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environment | Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
產品料號：
| P/N | DeSCRJPTion |
| EMXX-0101-W1 | mPCIe to M.2 A key Module |
| EMXX-0101-W2 | mPCIe to M.2 E key Module |
