溫馨提示：需求數量不同，價格不同。請聯系我們，確認當前新的報價！
Electromagnetics Toolkit包括兩個解決方案程序。EMP模擬2D平面幾何和3D圓柱系統中的電磁脈沖。該程序在保形三角形網格上采用有限元方法，以準確表示彎曲和傾斜的材料邊界。WaveSim對二維結構中的電磁波進行建模。該程序發現腔體和波導的共振模式，并處理散射解決方案。高性能匹配終端層代表開放空間條件。WaveSim確定近場和遠場解決方案并處理由電阻率或不完善材料響應引起的吸收。這兩個程序都具有用于繪圖和解決方案分析的集成圖形后處理器。該軟件包包括用于EMP生成的時間信號的Probe實用程序。
特征：
創建多達250個區域。材料類型包括真空、導體或有損耗的電介質和鐵氧體
通過數學函數定義一個區域的介電常數、磁導率或電導率的空間變化的選項
通過表格或數學函數表示多個源的任意時間變化
在多達50個探頭位置記錄與時間相關的電場和磁場分量
區域內場能量密度和電阻功耗的自動積分
由介電常數和/或磁導率的虛部表示的材料吸收
結構的自動共振映射
簡單的輸出格式，便于將數據傳輸到用戶應用程序或數學分析程序
【英文介紹】

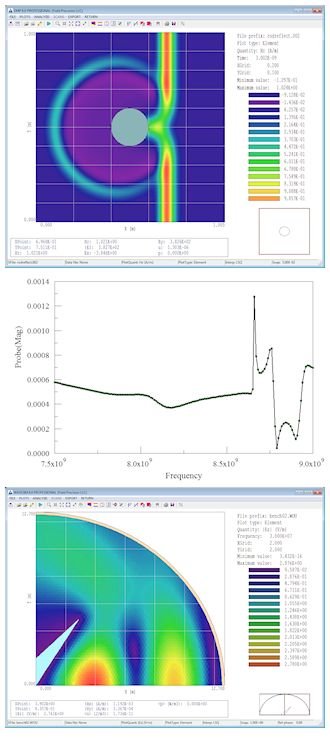

The Electromagnetics Toolkit includes two solution programs. EMP simulates electromagnetic pulses in 2D planar geometries and 3D cylindrical systems. The program employs unique finite-element methods on conformal triangular meshes for accurate representations of curved and sloped material boundaries. WaveSim models electromagnetic waves in 2D structures. The program finds resonant modes of cavities and waveguides and also handles scattering solutions. High-performance matched termination layers represent open-space conditions. WaveSim determines both near- and far-field solutions and handles absorption resulting from resistivity or imperfect material response. Both programs feature integrated graphical post-processors for plots and solution analysis. The package includes the Probe utility for temporal signals generated by EMP.
Features
Create up to 250 regions. Material types include vacuum, conductors, or lossy dielectrics and ferrites
Option to define spatial variations of dielectric constant, magnetic permeability or conductivity through a region from mathematical functions
Represent arbitrary time variations of multiple sources through tables or mathematical functions
Record time-dependent electric and magnetic field components at up to 50 probe locations
Automatic integrals of field energy density and resistive power dissipation over regions
Material absorption represented by imaginary parts of the dielectric constant and/or magnetic permeability
Automatic resonance mapping of structures
Simple output formats for easy data transfer to user applications or mathematical analysis programs
