溫馨提示：需求數量不同，價格不同。請聯系我們，確認當前新的報價！

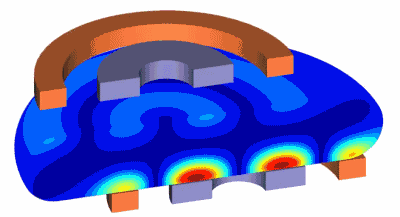

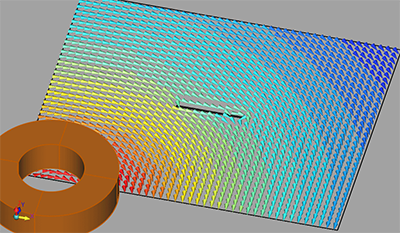

降低成本和開發時間是一項不斷增加的挑戰。來自INTEGRATED Engineering Software的3D時諧渦流場求解器FARADAYTM為您提供正面應對這一挑戰所需的優勢。使用我們的邊界元法（BEM）和有限元法（FEM）技術，FARADAYTM是需要大開放區域分析、邊界準確建模以及處理small skin深度的問題的明確選擇。
FARADAYTM快速準確的計算力、扭矩、位移電流、磁鏈、感應電壓、功率和阻抗。
特征：
使用FARADAY瞬態求解器直接模擬時間相關渦流場的模擬
平移和旋轉運動引起的渦流場也可以用有限元法求解
耦合到攝氏溫度進行熱分析
直觀的線圈和繞組編輯器
模擬外加電流和指定電壓條件
瞬態、相量和靜態分析模式
周期性和對稱特征，以很大限度的減少建模和求解時間
分析力、扭矩、磁鏈、功率和阻抗參數
集膚效應導致的導體電流密度分析
強的參數化功能，允許通過允許分析多個“假設”場景并促進優化來逐步定義可變參數
用于設計評估和優化的多種后處理選項
自適應網格劃分或可選的用戶細化
應用：
核磁共振
磁記錄頭
無損檢測系統
磁屏蔽
母線、充電夾具
線圈和變壓器
感應加熱線圈
感應電機
系統要求：
64位操作系統
Microsoft Windows 10或更高版本
安裝需要大約110MB的磁盤空間
3D程序：
至少4GB的RAM運行，但對于應該使用16GB或更多RAM的較大問題，不建議這樣做。使用的RAM越多，解決問題的速度就越大
強烈建議使用多核處理器，因為3D程序是多線程的
【英文介紹】
Reducing design costs and development times is an ever-increasing challenge. FARADAYTM, a 3D time-harmonic eddy current field solver from INTEGRATED Engineering Software gives you the advantage you need to meet this challenge head on. Using our innovative Boundary Element Method (BEM) and Finite Element Method (FEM) technologies, FARADAYTM is the only clear choice for applications requiring large open region analysis, exact modeling of boundaries and problems where dealing with small skin depths is critical.
Fast and accurate, FARADAYTMcalculates force, torque, displacement current, flux linkage, induced voltage, power, and impedance.
Features
Simulation of time dependent eddy current field simulated directly with the FARADAY Transient Solver.
Translational and rotational motion induced eddy current field can be solved with the finite element method as well.
Coupling to Celsius for thermal analysis
Intuitive Coils and Windings editor
Simulation of impressed currents and assigned voltage conditions
Transient, phasor and static analysis modes
Periodic and symmetry features to minimize modeling and solution time
Analysis of force, torque, flux linkage, power and impedance parameters
Analysis of current density in conductors due to skin effects
Powerful parametric feature which allows definition of variable parameters to be stepped through allowing the analysis of multiple “what-if” scenarios and facilitating design optimization
A wide array of post-processing options for design evaluation and optimization
Self-adaptative meshing or optional user refinement
