溫馨提示：需求數量不同，價格不同。請聯系我們，確認當前新的報價！
與CABLESTM套件合作開發，可Manitoba-Hydro-International分析由長平行線、護套和絕緣組成的不規則、不對稱和非對稱傳輸結構和模型。CABLESTM可求解電容、渦流
和電場強度等電線參數。CABLESTM有助于在計算線路和電纜屬性時考慮鄰近效應，為用戶提供頻率相關的阻抗矩陣。結果可以輸出為PSCAD用于導入電纜屬性的專有文件格式，或導出為文本數據文件以供一步分析。
可視化、分析、優化：
CABLESTM為電氣和電子系統的詳細分析提供出色的可視化功能。使用內置API和參數實用程序以及自適應BEM和FEM求解器自動創建模型，可以快速優化設計。
CABLESTM套件的開發提供了一種模塊化方法，用于定制和易用性。
CABLESTMBasic-電線參數計算
靜電模塊 - 電場強度、力、扭矩、傳輸線參數和電容
渦流模塊 - 磁場分析、感應電壓、位移電流、磁鏈、感應電壓、功率、阻抗和電流
特征：
靜電模塊-
非線性電導率和介電常數的模擬
能夠為表面分配恒定或不均勻的電荷分布
靜電力和扭矩計算
傳輸線參數和電容計算

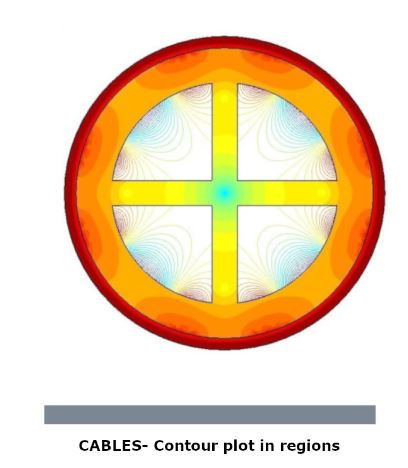

用于繪制標量和矢量場量的多種顯示形式，包括圖形、等高線圖、箭頭圖、剖面圖、流線圖和矢量軌跡圖
渦流模塊-
直觀且結構化的界面可很大限度地提高專家和初學者的工作效率
能夠模擬線圈和繞組的電壓激勵和反電動勢效應
由于趨膚效應和鄰近效應計算真正的交流電阻
提供多種細化波形，例如具有直流偏移的正弦源以及各種方波和三角脈沖
導體中感應電流和施加在導體中的趨膚效應電流的解決方案
力、扭矩、磁鏈、感應電壓、功率和阻抗參數
跨模塊的共同特征-
瞬態、相量和靜態分析模式
繪制標量和矢量場量的顯示形式包括：圖形、等高線圖、箭頭圖、剖面圖和矢量軌跡圖
數據可導出為格式化文件，以便與電子表格和其他軟件包集成
批處理功能允許多個文件的無人值守解決方案
參數化功能有助于設計優化
應用：

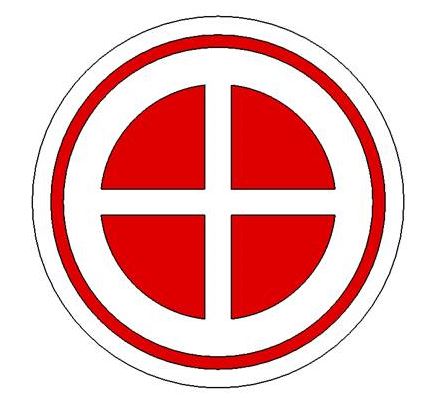

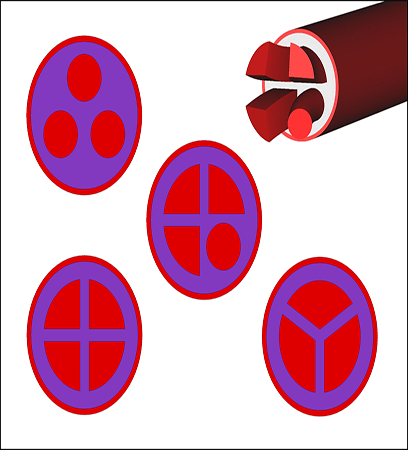

由長平行線，護套和絕緣組成的傳輸線結構和模型
系統要求：
64位操作系統
Microsoft Windows 10或更高版本
安裝大約需要110MB的磁盤空間
二維程序：
至少需要4GB的RAM
盡管該軟件在單處理器機器上運行，但在多處理器系統上運行它將使軟件能夠利用并行資源以并行方式求解
【英文介紹】
Developed in collaboration with Manitoba-Hydro-International the CABLESTMsuite analyzes irregular, asymmetrical and non-symmetrical transmission line structures and models consisting of long parallel wires, sheaths and insulation. CABLESTM solves electric line parameters such as capacitance, eddy currents and electric field strength.CABLESTMfacilitates consideration of proximity effects when computing line and cable properties, providing the frequency dependent impedance matrices for the user. The results can be output to a proprietary file format used by PSCAD for importing cable properties or exported to a text data file for further analysis.
Visualize, Analyze, Optimize
CABLESTMprovides outstanding visualization features for detailed analysis of electrical and electronic systems. Automated model creation using built-in API and Parametric Utilities combined with Self-Adaptive BEM and FEM solvers enable rapid optimization of designs.
The CABLESTMsuite has been developed offering a modular approach, for customization and ease of use.
CABLESTMBasic - Electric Line Parameters Calculation
Electrostatic Module - Electric field strength, Force, Torque, Transmission line parameters and Capacitance
Eddy-Current Module - Magnetic field analysis, Induced voltages, Displacement current, Flux linkage, Induced voltage, Power, impedance and Currents.
Features
Electrostatic Module -
Simulation of non-linear conductivity and permittivity
Ability to assign constant or non-uniform charge distributions to surfaces
Electrostatic force and torque calculations
Transmission line parameter and capacitance calculations
A variety of display forms for plotting scalar and vector field quantities including graphs, contour plots, arrow plots, profile plots, streamline plots and vector loci plots
Eddy-Current Module -
Intuitive and structured interface maximizes productivity for both experts and beginners
Ability to model voltage excitation and back EMF effects of coils and windings
Calculation of true AC resistance due to skin and proximity effects
Variety of refine wave forms available, such as sinusoidal sources with the DC offset and various square wave and triangular pulses
Solution of current induced in conductors and skin effect current impressed in conductors
Force, Torque, Flux linkage, Induced Voltage, Power, and Impedance Parameters
Common Features across the modules -
Transient, phasor and static analysis modes
Display forms for plotting scalar and vector field quantities include: graphs, contour plots, arrow plots, profile plots and vector loci plots
Data exportable to formatted files for integration with spreadsheets and other software packages
Batch function allows unattended solution of multiple files
Powerful parametric feature facilitates design optimization
