溫馨提示:需求數量不同,價格不同。請聯系我們,確認當前新的報價!
INDUCTO 2DTM程序提供2D/RS域中的耦合電磁和熱分析。OERSTEDTM的渦流模擬功能與KELVINTM的熱分析功能相關聯,可為感應加熱問題提供解決方案。
INDUCTO 2DTM可以執行瞬態和穩態仿真。此外,當不需要耦合仿真時,可以單獨使用OERSTEDTM和KELVINTM模塊。
使用INDUCTO 2DTM設計人員可以:

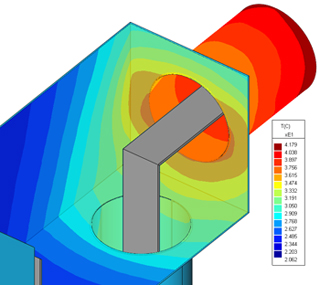

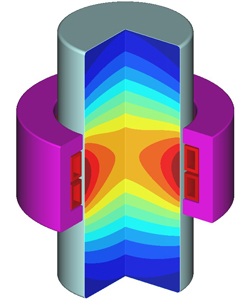

確定模型內全部點的溫度分布

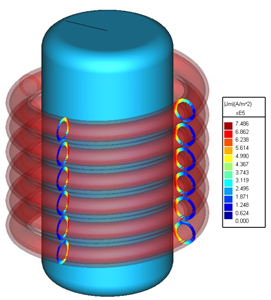

計算感應線圈的有效電阻和電抗
計算感應加熱系統的總功率要求
定制設計線圈以適應特定的感應加熱應用
設計通量集中器、磁分流器和電磁屏蔽
研究瞬態加熱和冷卻狀態的影響
特征:
適用于各種應用的3D射頻和微波場求解器
有限差分時域求解器
我們的軟件包包括:
求解器的選擇:為確保您對解決方案有信心并進行獨立驗證,BEM和FEM方法都包含在同一個軟件包中,以滿足您的特定應用需求。并非每個求解器都適合每個應用程序,沒有“一刀切”。
優化工具的選擇:參數分析適用于那些需要快速方便優化且學習曲線短的人。API和腳本為高等用戶提供了更多功能。這兩種工具都在同一個包中。
內置材料庫:自定義和創建您自己的庫,以便方便訪問您使用的材料。
與MATLAB集成:用戶的MATLAB代碼可以包含對INTEGRATED API的函數調用,以構建幾何、分配物理參數、求解和獲得結果。
并行化:在64位計算機上使用時,可以充分利用可用RAM,從而顯著提高求解速度和后處理速度。
直觀的界面:可根據用戶偏好定制(整體外觀、工具欄、求解器、背景、默認值等)。
系統要求:
64位操作系統
Microsoft Windows 10或更高版本
安裝需要大約110MB的磁盤空間
二維程序:
至少需要4GB的RAM
盡管該軟件在單處理器機器上運行,但在多處理器系統上運行它將使軟件能夠利用并行資源以并行方式求解。
【英文介紹】
INDUCTO 2DTMprogram provides coupled electromagnetic and thermal analysis in the 2D/RS domain. The eddy current simulation capabilities of OERSTEDTMare linked to the thermal analysis capabilities of KELVINTM to provide a complete solution for induction heating problems.
INDUCTO 2DTMcan perform both transient and steady-state simulations. In addition, the OERSTEDTMand KELVINTMmodules can be used separately when coupled simulations are not required.
Using INDUCTO 2DTMdesigners can:
Determine temperature distribution at all points within a model
Calculate effective resistance and reactance of induction coils
Calculate total power requirements for induction heating systems
Custom design coils to accommodate specific induction heating applications
Design flux concentrators, magnetic shunts and electromagnetic shields
Investigate effects of transient heating and cooling regimes
Features
3D RF and microwave field solver for a diverse range of applications.
Finite difference time domain solver.
At no extra cost, our software packages include:
Choice of solvers: To ensure you have confidence in the solution and for independent verification, both BEM and FEM methods are included in the same software package to suit your specific application needs. Not every solver fits every application, no "on size fits all".
Choice of optimization tools: Parametric Analysis for those who need fast and easy optimization with a short learning curve. API and Scripting give more power to advanced users. Both tools are available in the same package.
Built-in material libraries:Customize and create your own library for easy access to the materials you use.
Integration with MATLAB: Users' MATLAB code can include function calls to the INTEGRATED API to build geometry, assign physical parameters, solve, and obtain results.
Parallelization: When used on 64-bit computers, this permits full utilization of the available RAM to dramatically increase speed of solution and post-processing.
Intuitive interface that can be easily customized according to user preferences (overall appearance, toolbars, solvers, backgrounds, defaults, etc.)
