SeismoSpect 構成了一個簡單而平臺，允許用戶創建自己的地面運動記錄庫并將它們全部保存在一個文件中，以便于處理和共享大量記錄。該應用程序能夠應用多種濾波器類型并使用三階多項式執行基線校正。支持26種基于代碼的頻譜，包括Eurocode 8、ASCE 41 17和其它法規的頻譜。（因此用戶可以組合不同的記錄，以區分那些平均光譜進行比較的能力。）

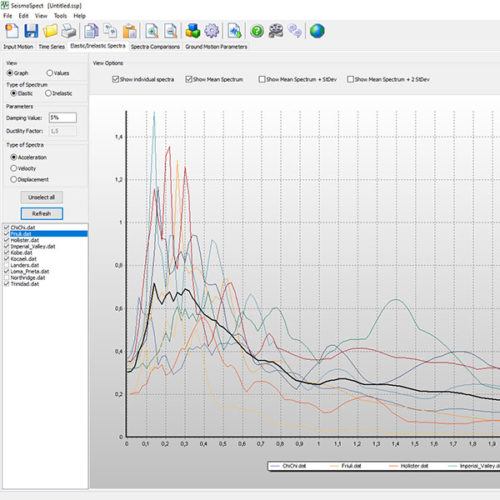

該工具還能夠計算加速度圖集合的平均光譜響應，并將這些結果與目標光譜進行比較（用戶因此可以組合不同的記錄，以區分平均光譜將滿足特定目標光譜的那些）。引入了一個模塊來計算工程師地震學家和地震工程師經常需要的一些強運動參數，例如：
加速度、速度和位移
有效的設計加速
過阻尼和恒延性非彈性響應譜
Arias (Ia) 和特征 (Ic) 強度
累積速度 (CAV) 和比能量密度 (SED)
加速度、速度和位移的均方根 (RMS)
持續加速度 (SMA) 和速度 (SMV)
加速度 (ASI) 和速度 (VSI) 譜強度
主要（Tp）
持續時間長
有效循環數
Damage index
增量速度 (MIV)
沖動指數（IP指數）
平均光譜加速度 (Sa,avg)
該程序具有友好的圖形用戶界面，能夠讀取以每行格式（強運動數據庫使用的兩種流行的格式）定義的單個或多個值的單個加速度圖。由于與 Windows 環境集成，SeismoSpect 允許將數字和圖形結果復制到 Windows 應用程序（例如 MS Excel、MS Word 等），并指出特性圖可以在程序本身內自定義。
【英文介紹】

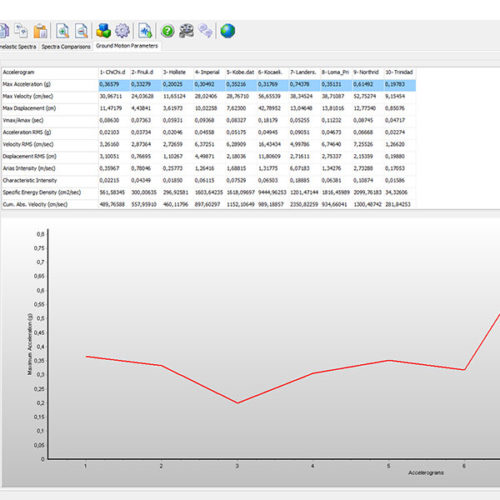

SeismoSpect constitutes a simple and efficient platform that will sllow users to create their own library of ground motion records and save them all in a singel file making it easy to handle and share large numbers of records. This application is capable of applying several filter types and to perform baseline-correction using up to third order polynomials. This tool is also capable of computing the mean spectral response of a collection of accelerograms and to compare these results with a target spectrum (users can thus combine different records in order to individuate those whose average spectrum will meet a certain target spectrum). Finally, a module was introduced to compute a number of strong-motion parameters often required by engineer seismologists and earthquake engineers, such as:
Maximum acceleration, velocity and displacement
Effective design acceleration
Overdamped and constant-ductility inelastic response spectra
Arias (Ia) and characteristic (Ic) intensities
Cumulative absolute velocity (CAV) and specific energy density (SED)
Root-mean-square (RMS) of acceleration, velocity and displacement
Sustained maximum acceleration (SMA) and velocity (SMV)
Acceleration (ASI) and velocity (VSI) spectrum intensity
Predominant (Tp)
Significant duration
Number of effective cycles
Damage index
Maximum incremental velocity (MIV)
Impulsivity index (IP Index)
Average spectral acceleration (Sa,avg)
The program features a friendly graphical user interface capable of reading single accelerograms defined in both single or multiple values per line formats (the two most popular formats used by strong-motion databases). Owing to its full integration with the Windows environment, SeismoSpect allows for numerical and graphical results to be copied to any Windows application (e.g. MS Excel, MS Word, etc.), noting that the characteristics plots can be fully customised from within the program itself.
