溫馨提示：需求數量不同，價格不同。請聯系我們，確認當前新的報價！
ProShake Pro是一款功能強、用戶友好的計算機程序，用于一維等效線性地面響應分析。ProShake 2.0從頭開始編寫。包括很多功能，可使數據輸入、分析、查看和記錄結果變得和有效，包括內置的模量減少和阻尼模型、土壤剖面和輸入運動參數的圖形顯示、各種輸出參數的圖形化顯示和地面響應動畫。ProShake 2.0被分為三個“管理器”——一個輸入管理器、一個解決方案管理器和一個輸出管理器。輸入管理器允許輸入土壤剖面和輸入運動數據。解決方案管理器執行迭代等效線性分析，同時跟蹤向應變兼容土壤特性收斂的過程。輸出管理器允許以時間歷史、響應譜、參數配置文件和動畫的形式輕松繪制結果。還可以計算一系列其他參數。ProShake 2.0還包括有用的報告功能，作為Microsoft Word格式的文件，以表格形式自動記錄每個分析的條件。全部ProShake 2.0繪圖都可以復制到報告中并保存，以便在Microsoft Word中進行后續編輯。

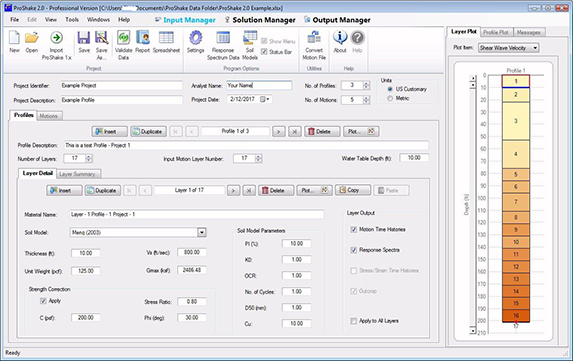

ProShake 2.0用戶界面圖
ProShake 2.0在ProShake 1.12的基礎上加入了很多增強功能。這只是增強功能的簡短列表：
重新設計的用戶界面，在輸入和輸出管理器中具有廣泛的繪圖選項。
適用于全部新版本Microsoft Windows OS、Windows Vista或更高版本。
將Microsoft Excel和Word格式文件分別用于輸入數據/結果/輸出和報告。
可以在同一個項目中分析多個土壤剖面（分析）。
識別PEER格式 (.AT2) 運動。
數據輸入期間配置文件和屬性的圖形顯示。
具有強度兼容模量折減曲線選項的新土壤模型。
數據過濾以有效檢查和繪制分析結果。
將地面運動動畫導出為Flash文件，以供單獨查看或插入演示文稿。
硬件配置要求：
| Machine | Minimum: 1.9GHz clock speed processor Recommended: dual processor |
| 內存 | Minimum: 2GB of RAM Recommended: 4GB RAM or more |
| Display | Minimum: 1024 x 768 screen resolution Recommended: 1600x1200 |
| 硬盤 | Minimum: 500 MB free hard disk space Recommended: 5GB free hard disk space |
| NET version | NET 4.0 Client Profile required |
【英文介紹】
ProShake 2.0 is a powerful, user-friendly computer program for one-dimensional, equivalent linear ground response analysis. Written completely from scratch, ProShake 2.0 includes numerous features to make data entry, analysis, viewing and documenting of results efficient and effective, including built-in modulus reduction and damping models, graphical display of soil profile and input motion parameters, graphical display of a wide variety of output parameters, and animation of ground response. ProShake 2.0 is organized into three "managers" - an Input Manager, a Solution Manager, and an Output Manager. The Input Manager allows entry of soil profile and input motion data. The Solution Manager performs iterative equivalent linear analyses while tracking the process of convergence toward strain-compatible soil properties. The Output Manager allows easy plotting of results in the form of time histories, response spectra, parameter profiles, and animations. A series of other parameters can also be computed. ProShake 2.0 also includes useful Report feature, as a file in Microsoft Word format, that automatically records the conditions of each analysis in tabular form. All ProShake 2.0 plots can be copied to the Report and saved for subsequent editing in Microsoft Word.
ProShake 2.0 incorporates numerous enhancements over ProShake 1.12. This is only a short list of the enhancements:
Completely redesigned user interface with extensive plotting options in the Input and Output Managers.
Works on all new versions Microsoft Windows OS, Windows Vista or higher.
Uses Microsoft Excel and Word format files for input data/results/output and report, respectively.
Can analyze multiple soil profiles within the same project (analysis).
Recognizes PEER-formatted (.AT2) motions.
Graphical display of profile and properties during data entry.
New soil models with option for strength-compatible modulus reduction curves.
Data filtering for efficient examination and plotting of analysis results.
Exporting of ground motion animations as Flash files for stand-alone viewing or insertion into presentations.
