| umber of wells | 4 |
| Outer dimensions | ? 17 mm |
| Volume per well | 110 μl |
| Growth area per well | 0.35 cm2 |
| Coating area per well | 1.23 cm2 |
| Width of cell free gap | |
| - Two cell fronts | 500 μm +/- 100 μm |
| - Four cell fronts (center) | 1000 μm +/- 100 μm |
| Material | Biocompatible silicone |
| Bottom | No bottom - sticky underside |

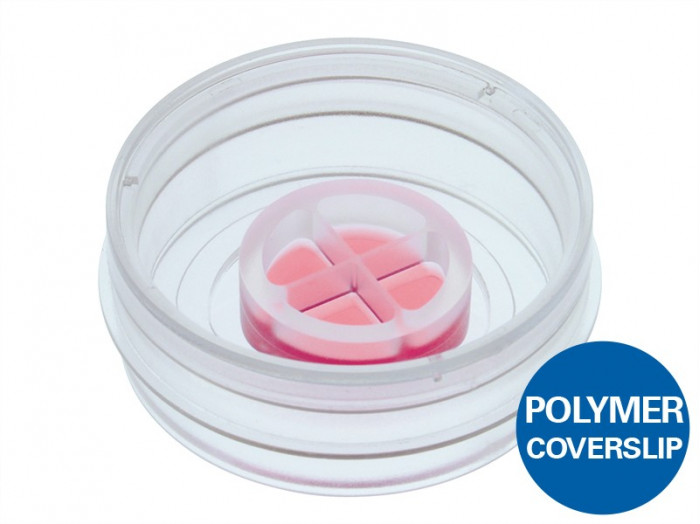

μ-Dish 35 mm,高壁，預置傷口愈合4孔插件培養皿，ibiTreat 底部處理
A 4 well silicone insert with 4 defined cell-free gaps, suitable for wound healing, migration assays, 2D invasion assays, and co-cultivation of cells
Complete solution for wound healing experiments, requiring only a few steps from sample preparation to image analysis
Reproducible experiments owing to: four defined 500 μm cell free gaps and one 1000 μm center gap, no leakage during cultivation, and no material being left behind after the insert’s removal
Suitable for 4 experiments, including a center gap that allows to observe the migration of all cell types
Individual inserts for single experiments
Ideal cell growth on ibiTreat surface
Cat.No:80466
