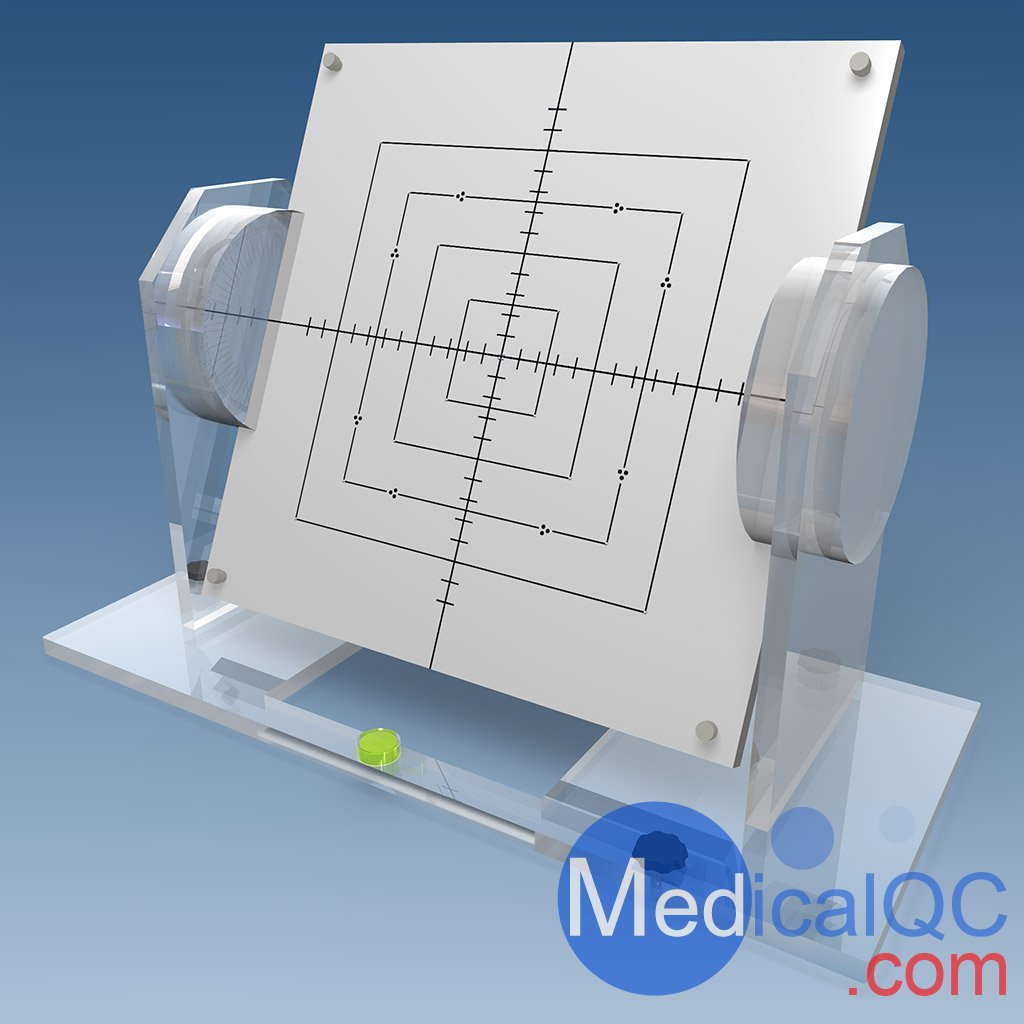

Pro-RT IsoBeam等中心校準儀，Pro-RT IsoBeam準直儀
Pro-RT IsoBeam是一款多功能，高精度的質量保證工具，用于每天，每周或每月質量評估直線加速器或遠距治療設備的所有機械和幾何處理參數。
Pro-RT IsoBeam等中心校準儀，Pro-RT IsoBeam準直儀可以方便，準確地檢查準直儀的等中心度，臺架等中心度，臺面等中心度，準直儀的場尺寸精度，輻射/光場的一致性，等角點的旋轉穩定度，ODI精度和激光對準。
Pro-RT IsoBeam等中心校準儀，Pro-RT IsoBeam準直儀技術數據：
外形尺寸：203 x 457 x 330 mm
屏幕
305 x 305mm
2個不透明的PMMA板
空間為25x30cm電影
刻有精確定義屏幕角落，邊緣和中心的線條
現場尺寸：2x2mm，50x50mm，100x100mm，150x150mm和200x200mm
中心線用10mm的短線劃線
直徑2毫米的鎢標記在場地的中心和角落
可以以45°的增量旋轉360°
底座帶有三個調平防滑螺釘和氣泡水平
可選的表外測量
符合國際原子能機構“技術報告”（第398號），“國際原子能機構技術報告”（第430號系列）和“國際原子能機構技術通報”第1540號“放射治療計劃系統的規格和驗收測試”
CE認證
手冊提供了執行每個測試，結果評估和注冊的詳細指南
Pro-RT IsoBeam等中心校準儀，Pro-RT IsoBeam準直儀產品特點：
符合：
- 國際原子能機構技術報告（第398號系列）
- 國際原子能機構技術報告（第430號系列）- 國際原子能機構“技術文件”第
1540號，放射治療計劃系統的規格和驗收測試
CE認證
該手冊提供了詳細的指導方針，以進行每項測試，結果評估和注冊
The Pro-RT IsoBeam is a multifunctional, precision quality assurance tool for daily, weekly or monthly quality assessments of all mechanical and geometrical treatment parameters of linear accelerators or teletherapy units.
It is designed to easily and accurately check collimator isocentricity, gantry isocentricity, table isocentricity, collimator field size accuracy, radiation/light field congruence, isocenter rotational stability, ODI accuracy and laser light alignments.
Technical data (can be modified to customer specifications):
Overall dimensions: 203 x 457 x 330 mm
Screen
305 x 305mm
2 opaque PMMA plates
Space for 25x30cm film
Inscribed with lines precisely defining corners, edges, and centers of screen
Field sizes: 2x2mm, 50x50mm, 100x100mm, 150x150mm and 200x200mm
Center lines scribed with short lines 10mm apart
Tungsten markers 2mm in diameter in the center and corners of the field
Can rotate 360° in 45° increments
Base with three leveling non-slip screws and bubble level
Optional off-the-table measurement
Complies with IAEA Technical Reports (Series No. 398), IAEA Technical Reports (Series No. 430), and IAEA-TECDOC-1540, Specification and Acceptance Testing of Radiotherapy Treatment Planning Systems
CE certified
Manual provides detailed guidelines for carrying out each test, results assessment and registration
