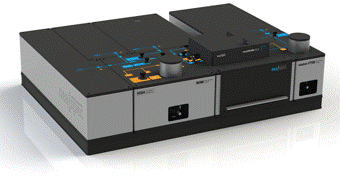

納米傅里葉紅外光譜儀nano-FTIR
------具有10nm空間分辨率的納米紅外光譜儀
neaspec公司的nano-FTIR技術
現代化學的一大科研難題是如何實現在納米尺度下對材料進行無損化學成分鑒定?，F有的一些高分辨成像技術，如電鏡或掃描探針顯微鏡等，在一定程度上可以有限的解決這一問題，但是這些技術本身的化學敏感度太低，已經無法滿足現代化學納米分析的要求。而另一方面，紅外光譜具有很高的化學敏感度，但是其空間分辨率卻由于受到二分之一波長的衍射限限制，只能達到微米別，因此也無法進行納米別的化學鑒定。
近期neaspec公司利用其的散射型近場光學技術發展出來的nano-FTIR納米傅里葉紅外光譜技術，使得納米尺度化學鑒定和成像成為可能。這一技術綜合了原子力顯微鏡的高空間分辨率，和傅里葉紅外光譜的高化學敏感度，因此可以在納米尺度下實現對幾乎所有材料的化學分辨。因而，現代化學分析的納米新時代從此開始。

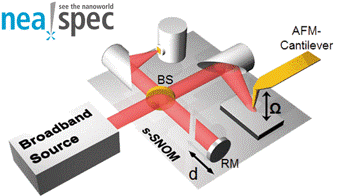

neaspec公司的散射型近場技術通過干涉性探測針尖掃描樣品表面時的反向散射光，同時得到近場信號的光強和相位信號。當使用寬波紅外激光照射AFM針尖時，即可獲得針尖下方10nm區域內的紅外光譜，即nano-FTIR.
nano-FTIR 光譜與標準FTIR光譜高度吻合：

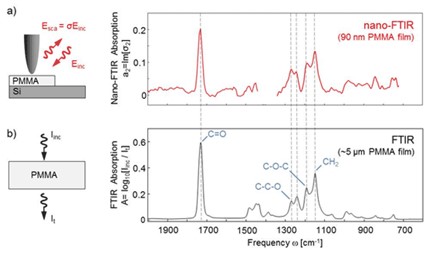

在不使用任何模型矯正的條件下，nano-FTIR傅里葉紅外光譜儀獲得的近場吸收光譜所體現的分子指紋特征與使用傳統FTIR光譜儀獲得的分子指紋特征吻合度高（如下圖），這在基礎研究和實際應用方面都具有重要意義，因為研究者可以將nano-FTIR光譜與已經廣泛建立的傳統FTIR光譜數據庫中的數據進行對比，從而實現快速準確的進行納米尺度下的材料化學分析。對化學成分的高敏感度與超高的空間分辨率的結合，使得nano-FTIR成為納米分析的特工具。
應用案例：
nano-FTIR傅里葉紅外光譜儀可以應用到對納米尺度樣品污染物的化學鑒定上。下圖顯示的Si表面覆蓋PMMA薄膜的橫截面AFM成像圖，其中AFM相位圖顯示在Si片和PMMA薄膜的界面存在一個100nm尺寸的污染物，但是其化學成分無法從該圖像中判斷。而使用nano-FTIR在污染物中心獲得的紅外光譜清晰的揭示出了污染物的化學成分。通過對nano-FTIR獲得的吸收譜線與標準FTIR數據庫中譜線進行比對，可以確定污染物為PDMS顆粒。
nano-FTIR對納米尺度污染物的化學鑒定

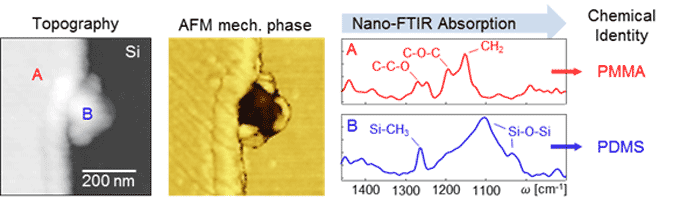

AFM表面形貌圖像 (左), 在Si片基體（暗色區域Ｂ）與PMMA薄膜（Ａ）之間可以觀察到一個小的污染物。機械相位圖像中（中），對比度變化證明該污染物的是有別于基體和薄膜的其他物質。將點Ａ和Ｂ的nano-FTIR 吸收光譜（右），與標準紅外光譜數據庫對比， 獲得各部分物質的化學成分信息. 每條譜線的采集時間為7min, 光譜分辨率為13 cm-1. （"Nano-FTIR absorption spectroscopy of molecular fingerprints at 20 nm spatial resolution.,”,F. Huth, A. Govyadinov, S. Amarie, W. Nuansing, F. Keilmann, R. Hillenbrand,）Nanoletters 12, p. 3973 (2012)）
主要技術參數配置：
■ 反射式 AFM-針尖照明 ■ 標準光譜分辨率: 6.4/cm-1 ■ 保護的無背景探測技術 ■ 基于優化的傅里葉變換光譜儀 ■ 采集速率： Up to 3 spectra /s | ■ 高性能近場光譜顯微優化的探測模塊 ■ 可升光譜分辨率：3.2/cm-1 ■ 適合探測區間：可見，紅外(0.5 – 20 μm) ■ 包括可更換分束器基座 ■ 適用于同步輻射紅外光源 NEW!!! |
